SkillMaster for Model. Text description and gif-animations. Part 2

SkillMaster for Model:

If you start use SkillMaster from SaprApps plugin it will add extra hotkeys in Tekla Structures.

This article is second part. First part is here: PART 1

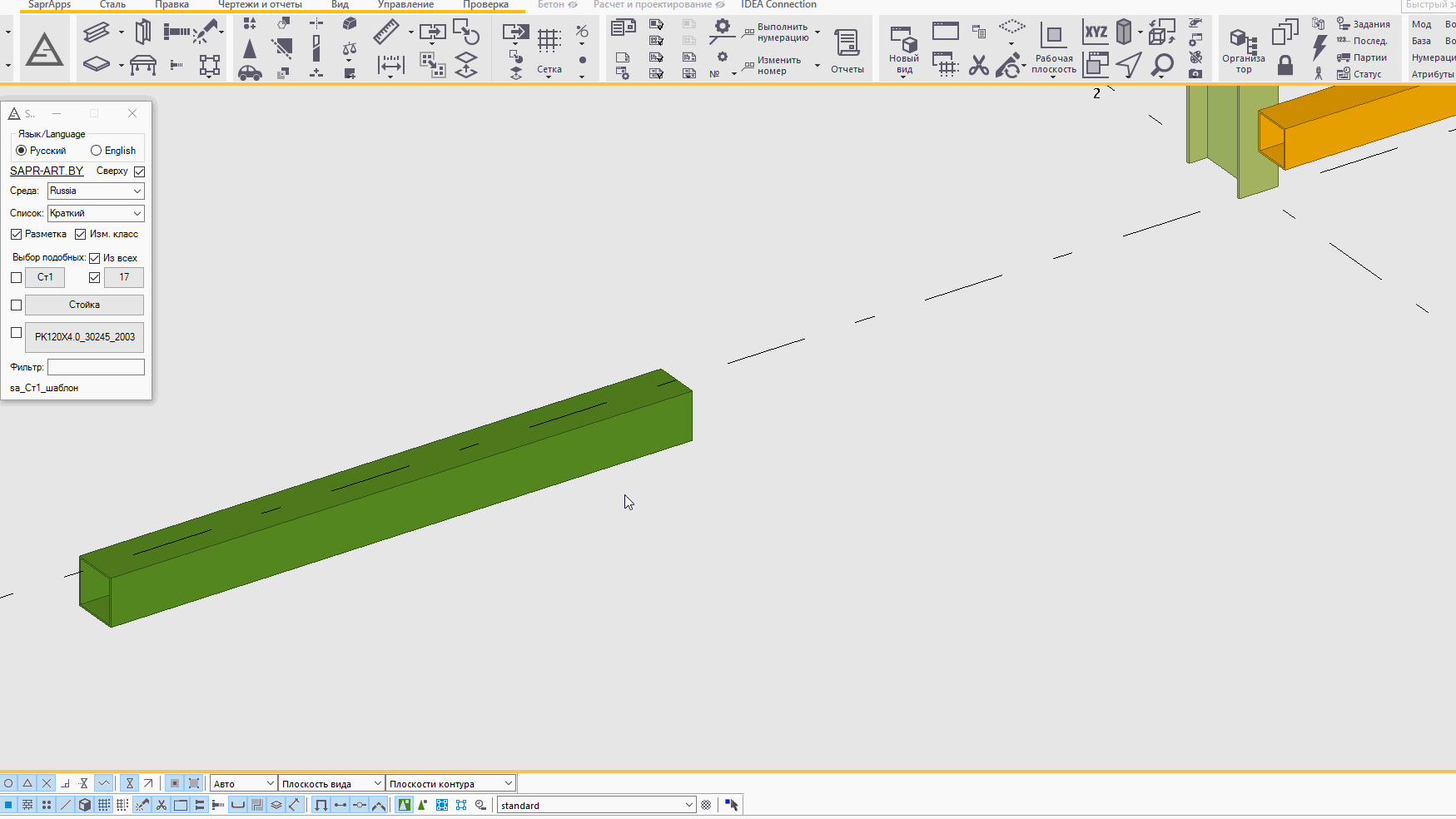

Function Ctrl+Shift+A can set main properties for beams “on the fly”. Attributes are used from accessible list from your model folder, XS_FIRM folder etc.

Algorithm (sequence using):

• Pick first beam (polybeam, column), maybe few model objects.
• Press Ctrl+Shift+A “Changing mode” starts
• Move cursor on monitor and watch changes
• Choose property list
• Stop “Changing mode”. There are 3 ways to do it: press “Esc” or  press “Del” or press hotkey that you have pressed before

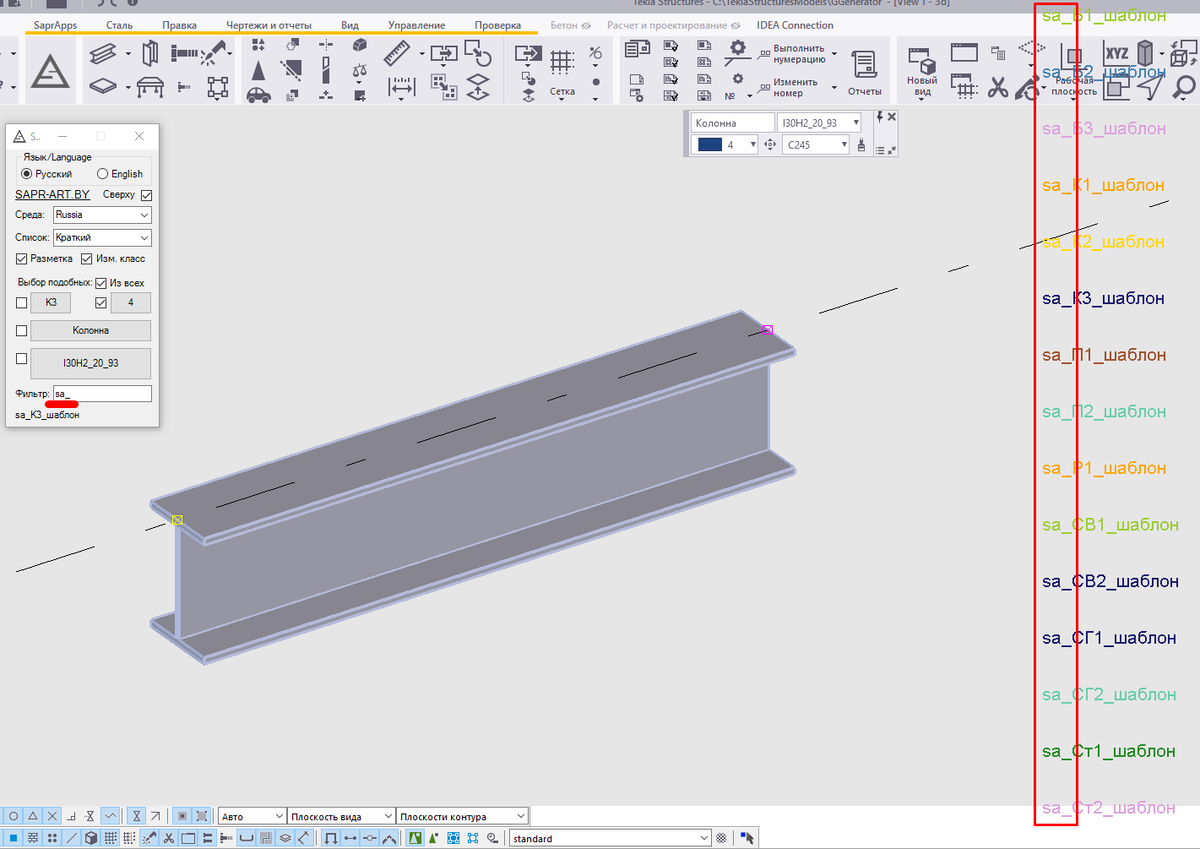

You can use filter to reduce attribute list. Write text string and use only items which contains this string:

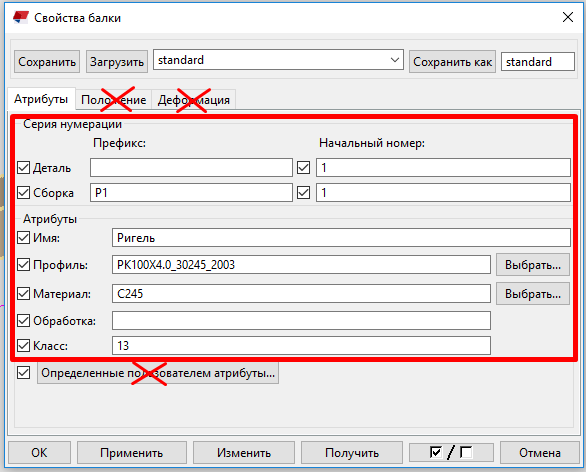

Pay attention. This function is not full “load attributes”. It sets only 9 main parameters:

There are 4 buttons:

• Assembly’s part prefix
• Class
• Name
• Profile

This buttons’ names are changing while using SkillMaster functions:

Use this buttons to set parameters.

Ctrl+Shift+S – fast selection of all similar beams in model.

Algorithm (sequence using):

• Choose settings (about it quite later)
• Pick beam-sample (exactly one item)
• Press hotkey Ctrl+Shift+S
• Select objects where you want find similar beams
• Finish choosing (click mouse middle button)

Quite often we need to find objects in the whole model. Use checkbox “All”. Finding will be from all objects:

• Pick beam-sample (exactly one item)
• Press hotkey Ctrl+Shift+S

Use checkboxes to set which properties you want to compare:

• Assembly prefix (part property)
• Class
• Name
• Profile

If you set all checkboxes, new selection will contain only beams which have all parameters like a beam-sample:
